Crossinter Co.,Ltd. (บริษัท ครอสอินเตอร์ จำกัด) We are the Online Power Meter solution provider.
Our Online Power Meter is an innovative solution with a world class integration of hardware and software. Our solution allow any user to check every single
power usage at real time through online for 24 hours from both website and mobile phone as well as getting all history record of every single power usage.
Gateway (GW)
1Gateway
Gateway (GW) Gateway will then deliver the data through an internet to our server and present on website. Our customer can monitor the power usage of each single point 24 hours at real time and all time.
2Specification
- Fast Scan BLE devices up to over 250 devices in short time
- Dimension (Length x Width x Height)(mm) : 75 x 59 x 12
- Operating Temp (degree C) : -40 ~ 85
- Operating Voltage : 5V Micro USB
- Wireless Technology : BLE + Wifi
- Bluetooth Version : V4.1(BLE)
- Wifi Wireless Protocol : IEEE 802.11 b/g/n
- Frequency Range : BLE 2.4 GHz, Wifi 2.4 GHz
- BLE Role : Peripheral + Center
- Wifi Role : Station
- Communication Range : BLE 40 meter, Wifi 100 meter
- Dimension (Length x Width x Height)(mm) : 75 x 59 x 12
- Operating Temp (degree C) : -40 ~ 85
- Operating Voltage : 5V Micro USB
- Wireless Technology : BLE + Wifi
- Bluetooth Version : V4.1(BLE)
- Wifi Wireless Protocol : IEEE 802.11 b/g/n
- Frequency Range : BLE 2.4 GHz, Wifi 2.4 GHz
- BLE Role : Peripheral + Center
- Wifi Role : Station
- Communication Range : BLE 40 meter, Wifi 100 meter
3The behavior of the device
Used to send and receive data to the Web Service system. The range of wifi communication is not more than 100 meters and transmits Bluetooth signals with Clamp Meter 40 meters (in open areas).
1Gateway (GW08)
Gateway (GW08) is a device that transmits WiFi signals to the Gateway (RP01 & RP02). Connects to the current measuring device (CM&FM) to send signals via the internet to display via the website or mobile phone by presenting. Information on electricity usage immediately 24 hours.
2Specification
- One Micro USB 5V Power input
- One Power LED
- One Sub-IG Status LED
- One WIFI Status LED
- Sub-IG at 915-MHz ISM System with 700M-1Km of communication distance
- Wifi at 2.4G band
- Dimension (L x w x H) : 75.3mm x 59mm x 12mm
- One Power LED
- One Sub-IG Status LED
- One WIFI Status LED
- Sub-IG at 915-MHz ISM System with 700M-1Km of communication distance
- Wifi at 2.4G band
- Dimension (L x w x H) : 75.3mm x 59mm x 12mm
3The behavior of the device
Used to send and receive data to the Web Service system. The range of wifi communication is not more than 100 meters and transmits Bluetooth signals with Clamp Meter 40 meters (in open areas).
Clamp Meter
1Clamp Meter (CM01)
Clamp Meter (CM-01) is a device used to measure electricity. By placing the cord and leaving it on, the device will send the current data to the receiving device immediately. This CM-01 device is suitable for the power cord. THW 1x1.5 - 1x6 Yachaki with a diameter of 10 mm.
2Specification
- AC current measurement
- Small, compact, measure electricity 0.3A-50A (AC) 3%
- Use plastics that are accepted according to UL 94-V0
- Easy to install, wireless
- Transmission as Bluetooth V 4.1 Which supports single-mode BLE solution protocols
- with built-in electrical temperature sensor Communicate with Gateway devices within 40 meters (in open areas)
- Small, compact, measure electricity 0.3A-50A (AC) 3%
- Use plastics that are accepted according to UL 94-V0
- Easy to install, wireless
- Transmission as Bluetooth V 4.1 Which supports single-mode BLE solution protocols
- with built-in electrical temperature sensor Communicate with Gateway devices within 40 meters (in open areas)
3The behavior of the device
Used to monitor electrical use of electrical appliances. Which can view information on mobile phones through apps and websites.

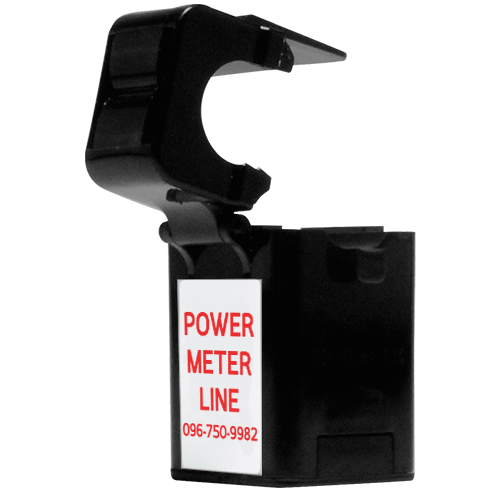

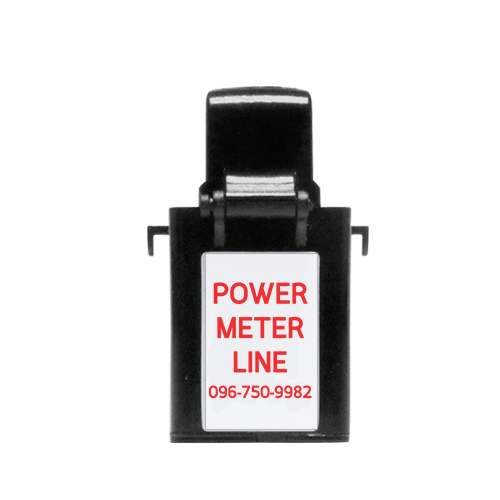

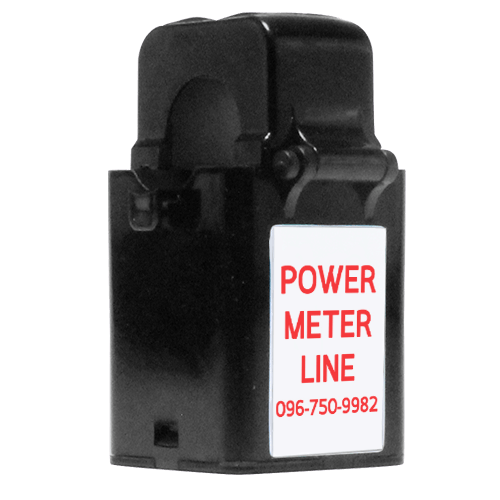

1Clamp Meter (CM02)
Clamp Meter (CM-02) is a device used to measure electricity. The device will send the current data to the transceiver device immediately. This CM-02 device is suitable for the power cord. THW 1x10 - 1x16 Yachaki with a diameter of 16 mm.
2Specification
- AC current measurement
- Small, compact, can measure electricity 0.6A-120A (AC) 3%
- Use plastics that are accepted in accordance with UL 94-V0
- Easy to install, wireless
- Bluetooth V 4.1 signal transmission Which supports single-mode BLE solution protocols
- with built-in electrical temperature sensor Communicate with Gateway devices within 40 meters (in open areas)
- Small, compact, can measure electricity 0.6A-120A (AC) 3%
- Use plastics that are accepted in accordance with UL 94-V0
- Easy to install, wireless
- Bluetooth V 4.1 signal transmission Which supports single-mode BLE solution protocols
- with built-in electrical temperature sensor Communicate with Gateway devices within 40 meters (in open areas)
3The behavior of the device
Used to monitor electrical use of electrical appliances. Which can view information on mobile phones through apps and websites.

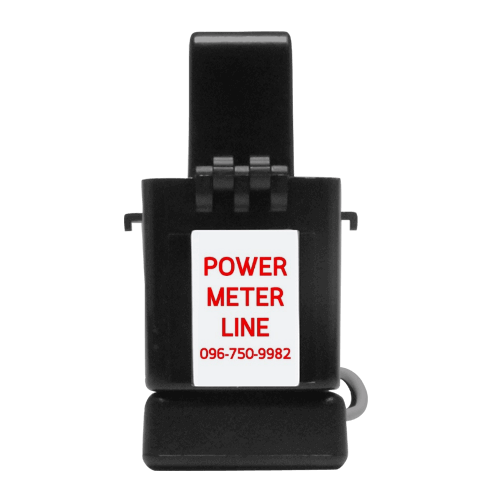

1Clamp Meter (CM03)
Clamp Meter (CM-03) is a device used to measure electricity. By placing the cord and leaving it on, the device will send the current data to the receiving device immediately. This CM-03 device is suitable for the power cord. THW 1x25 - 1x70 Yachaki with a diameter of 24 mm.
2Specification
- AC current measurement
- Small, compact, measure electricity 2A-250A (AC) 3%
- Use plastics that are accepted according to UL 94-V0
- Easy to install, wireless
- Transmission as Bluetooth V 4.1 Which supports single-mode BLE solution protocols
- with built-in electrical temperature sensor Communicate with Gateway devices within 40 meters (in open areas)
- Small, compact, measure electricity 2A-250A (AC) 3%
- Use plastics that are accepted according to UL 94-V0
- Easy to install, wireless
- Transmission as Bluetooth V 4.1 Which supports single-mode BLE solution protocols
- with built-in electrical temperature sensor Communicate with Gateway devices within 40 meters (in open areas)
3The behavior of the device
Used to monitor electrical use of electrical appliances. Which can view information on mobile phones through apps and websites.
1Clamp Meter (CM04)
Clamp Meter (CM-04) is a device used to measure electricity. By placing the cord and leaving it on, the device will send the current data to the receiving device immediately. This CM-01 device is suitable for the power cord. THW 1x95 - 1x120Yakaki with a diameter of 35 mm.
2Specification
- AC current measurement
- Small, compact, measure electricity 3A-350A (AC) 3%
- Use plastics that are accepted according to UL 94-V0
- Easy to install, wireless
- Transmission as Bluetooth V 4.1 Which supports single-mode BLE solution protocols
- with built-in electrical temperature sensor Communicate with Gateway devices within 40 meters (in open areas)
- Small, compact, measure electricity 3A-350A (AC) 3%
- Use plastics that are accepted according to UL 94-V0
- Easy to install, wireless
- Transmission as Bluetooth V 4.1 Which supports single-mode BLE solution protocols
- with built-in electrical temperature sensor Communicate with Gateway devices within 40 meters (in open areas)
3The behavior of the device
Used to monitor electrical use of electrical appliances. Which can view information on mobile phones through apps and websites.
Flex Ac Current Probe
1Flex Ac Current Probe (FM)
Flex Ac Current Probe (FM) current measuring device is a device used to measure electricity. By placing the cord and leaving it on, the device will send the current to the transmitter. This Flex Ac Current Probe (FM) device is suitable for power lines. With a diameter of not more than 90 mm.
2Specification
- Measure Current Range : 60A - 2,000A RMS AC (50/60Hz)
- Max. measure voltage : AC 600V
- Accuracy : 60A - 1,000A 3%
- Conductor Hole : Ø 90 mm
- Max. measure voltage : AC 600V
- Accuracy : 60A - 1,000A 3%
- Conductor Hole : Ø 90 mm
3The behavior of the device
Used to monitor electrical use of electrical appliances. Which can view information on mobile phones through apps and websites.
Our Product’s Benefit "Powermeterline"
Can monitor from anywhere anytime through mobile phone.
Can monitor power usage through both Android and IOS 24 hours.
Save money and cost
Can monitor power usage from all power usage posit at the same time.
Easy and convenience for installation.
Easy installation at every place which has an internet.
Has an alert system through LINE .
On your mobile once it has overcurrent or high temperature on power wire.
